Artec 3D

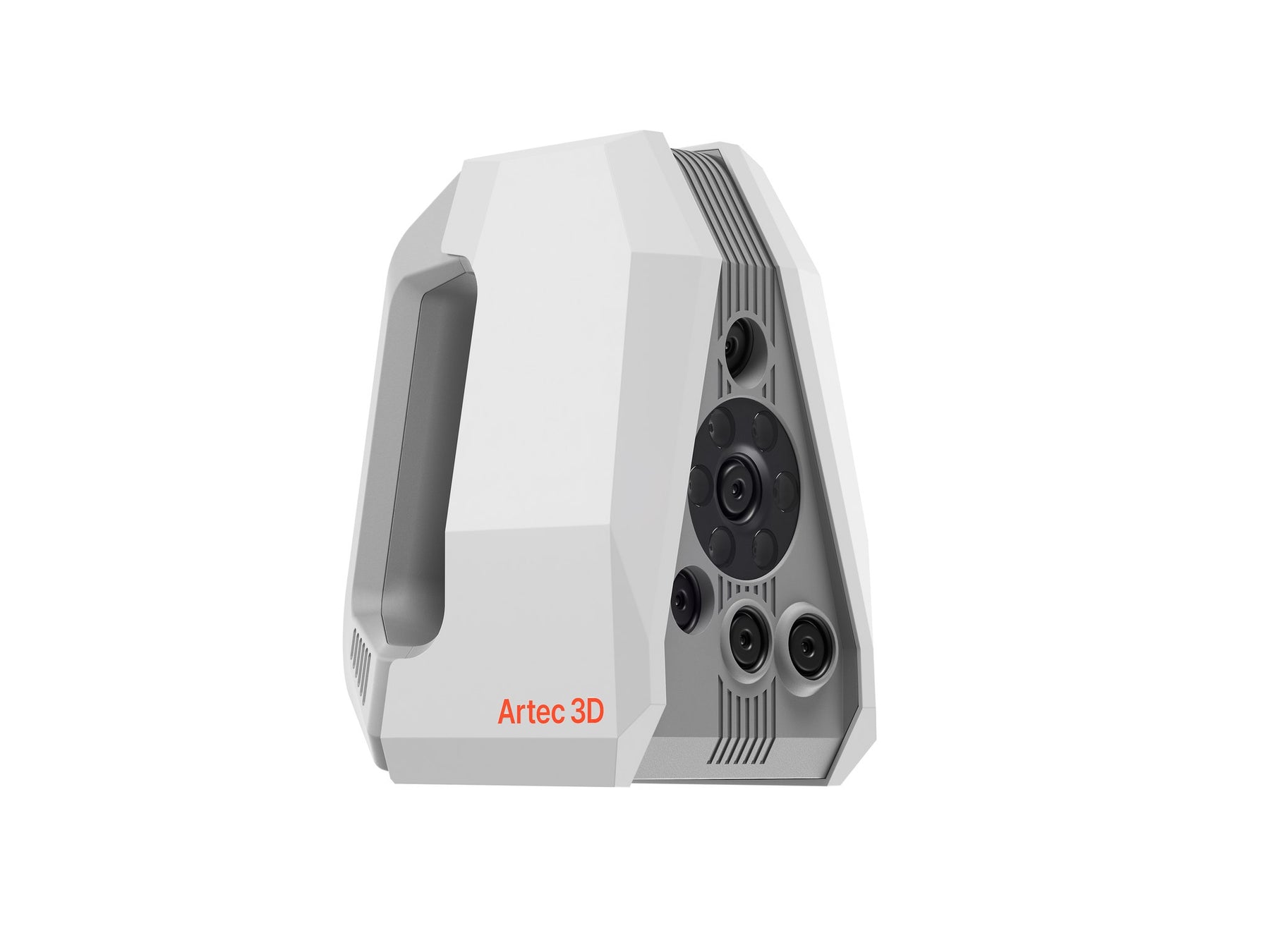

Artec Spider II Handheld 3D Scanner
Capture sharp edges, fine lines, and intricate details in 0.05 mm resolution and full color — from coin inscriptions to complete engine components, with no targets and no surface prep.
Authorized sales, demos & support by trained specialists
⬇ Download the Spider II Brochure (PDF)
Full specs on two pages — perfect for sharing with your team or purchasing department.
📩 Book a Free Demo / Get a Quote
Artec offers special education pricing on the Spider II. Ask us about EDU packages and bundles for schools, universities, and research programs.

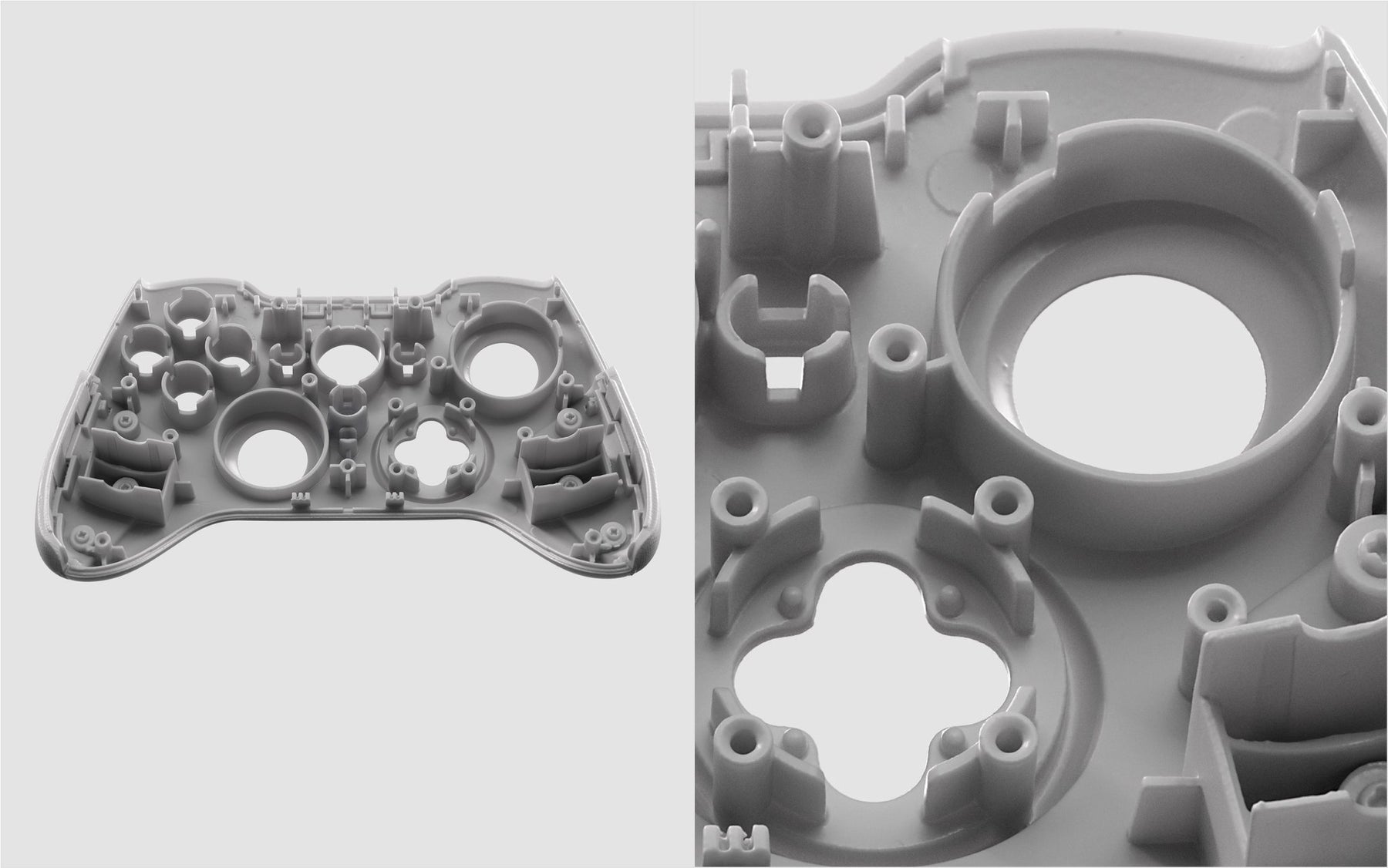

Every edge. Every rib. Every inscription.
The Artec Spider II is the successor to the industry-favorite Space Spider — rebuilt for a new level of detail capture. Its blue-LED structured light and precision optics resolve geometry down to 0.05 mm (0.002 in), faithfully digitizing sharp edges, thin ribs, deep holes, and fine engravings that defeat ordinary scanners.
Hybrid geometry-and-color tracking means no targets, no markers, and no surface prep — you pick it up and scan, with zero contact. That keeps medical settings sterile, forensic evidence untouched, and delicate artifacts safe.
Built-in temperature stabilization brings the scanner to its optimal operating point quickly and holds it there, delivering repeatable, long-term-predictable accuracy across changing environmental conditions — the trait that makes Spider II a true precision instrument rather than just a scanner.
See the Artec Spider II in action
Watch Artec's official introduction — a new standard in resolution and detail capture.
Precision engineering, effortless workflow
Ultra-high resolution capture designed to feel as easy as it is exact.
0.05 mm resolution & accuracy
Resolve fine engravings, thin ribs, and sharp edges at 0.05 mm (0.002 in) — among the highest-detail handheld capture available.
Target-free, contact-free
Hybrid geometry + color tracking locks onto the object itself. No stickers, sprays, or setup — and zero physical contact with the part.

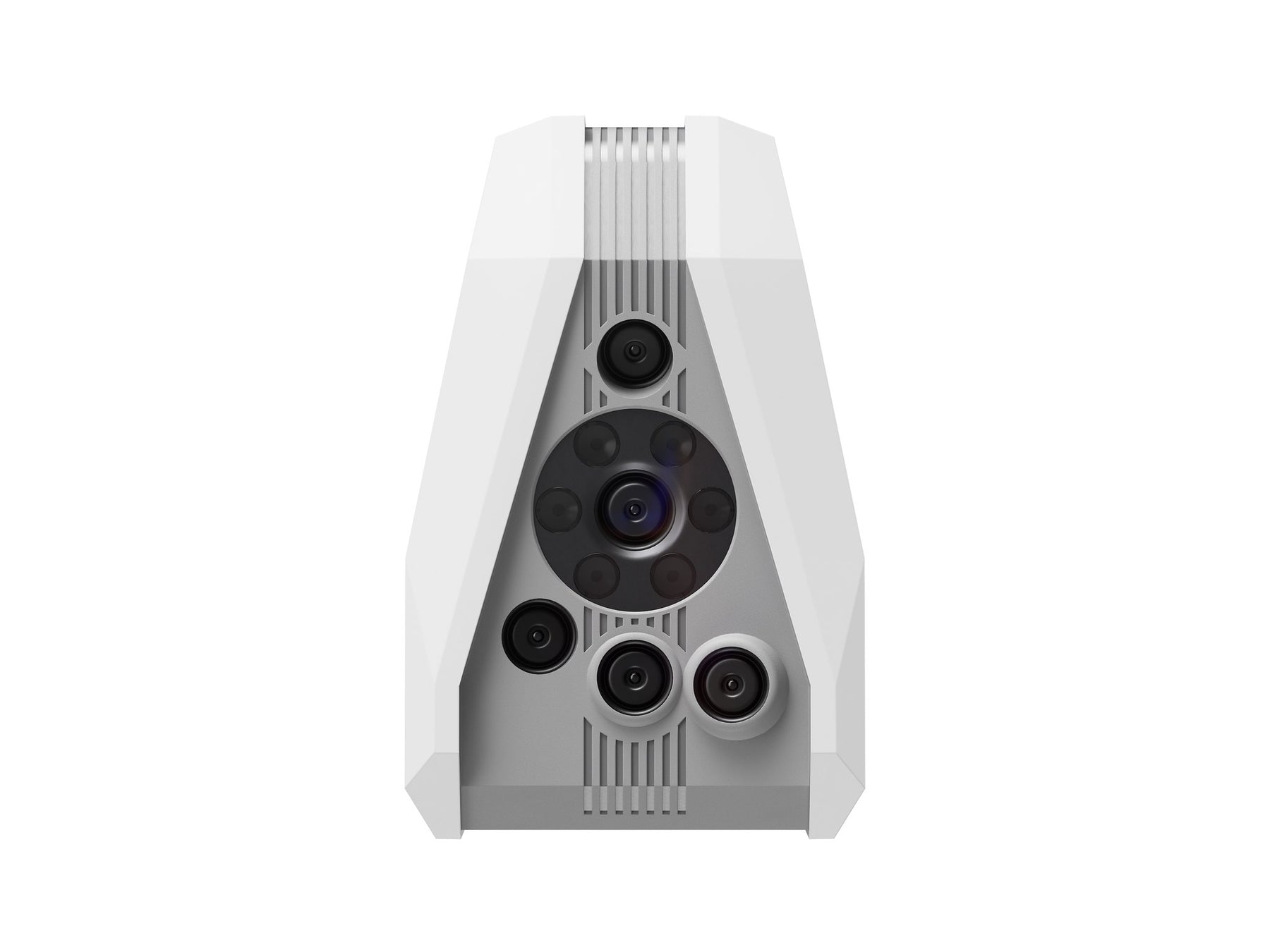

Blue-light technology
Blue LED structured light captures precise geometry with reduced sensitivity to challenging dark and shiny surfaces.
Wider field of view
An expanded 171 × 152 mm (6.7 × 6.0 in) field of view covers more surface per pass — faster scans with less risk of missed areas.
30 FPS capture
Real-time fusion at 30 frames per second and up to 8 million points per second — scan at a pace that feels natural.
Temperature stabilization
Reaches and holds optimal operating temperature for repeatable accuracy and long-term predictable results in changing conditions.
5 Mpx true-to-life color
A 5-megapixel sensor captures texture in 24-bit color depth, pairing exact geometry with vibrant, realistic texture.
Thunderbolt 3 data transfer
High-volume scan data moves fast — Thunderbolt 3 (Thunderbolt 4 compatible) keeps capture and processing responsive.
Full Artec ecosystem
Merge Spider II data with scans from Leo, Eva, or Micro II in Artec Studio — fine detail and large coverage in one model.
Built for small objects and fine detail on larger ones

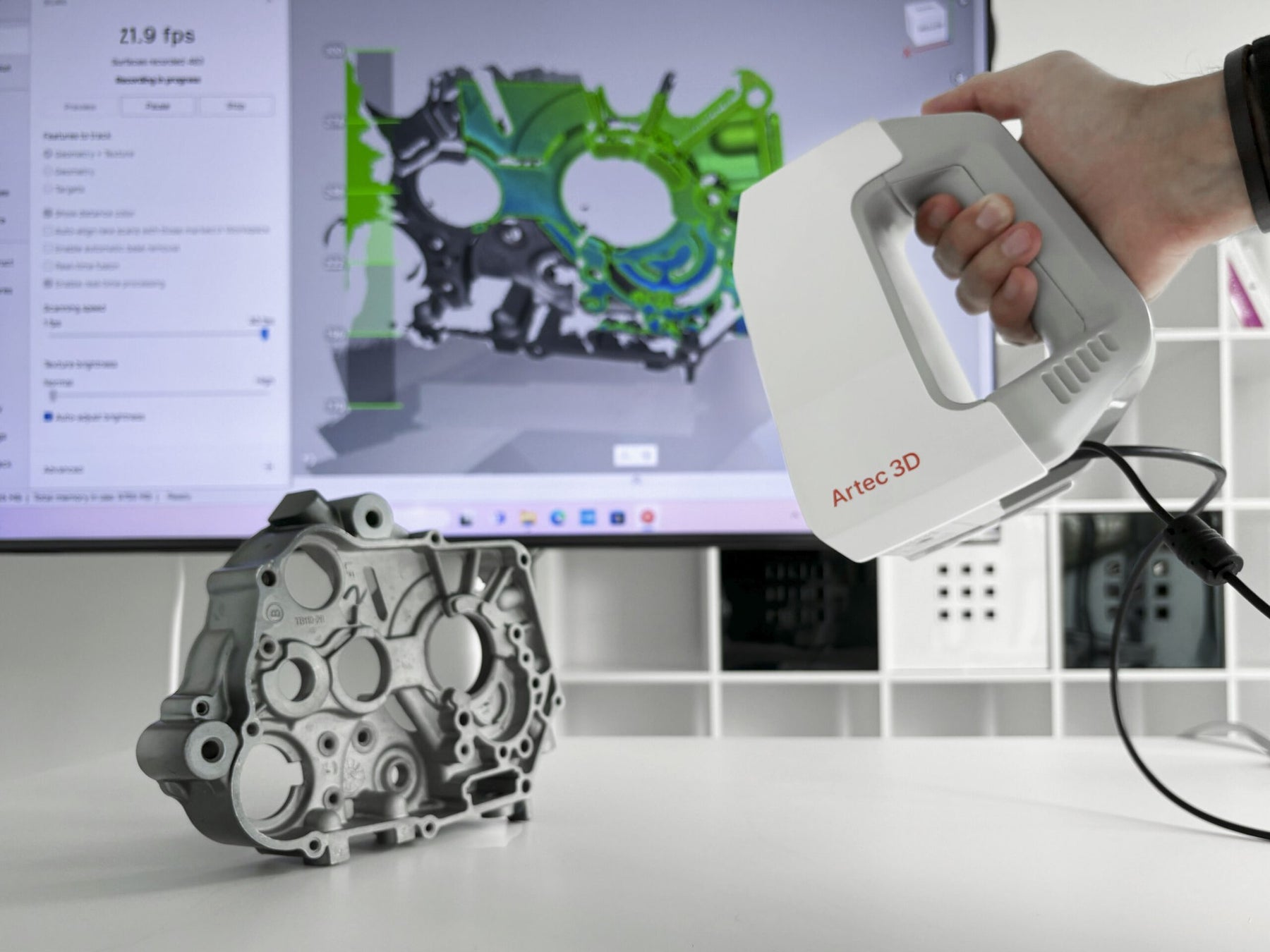

With a working distance of 0.19–0.3 m (7.5–11.8 in) and 110 mm (4.3 in) depth of field, Spider II excels at small-to-medium objects — from coins to engine components — and at capturing intricate regions of larger parts in detail no general-purpose scanner can match.
Spider II's blue light is eye-safe and completely contact-free — suitable for scanning body parts in medical applications, untouched forensic evidence, and fragile heritage objects.
Why buy your Artec Spider II from 3DMakerWorld?
As a Gold-Certified Artec 3D Reseller, we offer more than a transaction. You get a dedicated partner invested in the success of your scanning projects.
🥇 Gold-Certified Artec 3D Partner
Officially authorized to sell, support, and service the complete Artec 3D scanner lineup — the highest tier of Artec reseller certification.
🧑💻 Trained specialist team
Our team holds Artec certifications and provides hands-on demos, setup, and technical onboarding.
💬 Pre-sale application consultation
Not sure if Spider II fits your parts and workflow? We'll help you find the best fit before you buy — even if it's a different scanner.
🛠️ Post-purchase support & service
US-based support from people who know your exact hardware — not a generic call center.
🎓 Training & workflow guidance
Guided onboarding, Artec Studio training, and scan-to-CAD workflow best practices to get productive fast.
🖨️ In-house scanning service bureau
We use Artec scanners daily in our own 3D scanning and printing service work — advice from operators, not order-takers.
Industries that depend on Artec Spider II
Technical specifications
Complete Artec Spider II specs for accuracy, capture performance, hardware, and output formats.
| 3D resolution | Up to 0.05 mm (0.002 in) |
| 3D point accuracy | Up to 0.05 mm (0.002 in) |
| 3D accuracy over distance | Up to 0.05 mm + 0.3 mm/m (0.002 in + 0.004 in/ft) |
| Temperature stability | Built-in stabilization for repeatable, long-term predictable accuracy |
| Object size range | Small to medium — coins to engine components |
| Working distance | 0.19 – 0.3 m (7.5 – 11.8 in) |
| Volume capture zone | 1,800 cm³ (≈ 110 in³) |
| Field of view (H×W, closest range) | 128 × 104 mm (5.0 × 4.1 in) |
| Field of view (H×W, furthest range) | 171 × 152 mm (6.7 × 6.0 in) |
| Depth of field | 110 mm (4.3 in) |
| 3D reconstruction rate (real-time fusion) | Up to 30 FPS |
| Data acquisition speed | Up to 8 million points/s |
| Structured light source | Blue LED — eye-safe, contact-free |
| Texture capture | 5 Mpx sensor, 24-bit color |
| Tracking | Hybrid geometry + color, target-free |
| Interface | Thunderbolt 3 (compatible with Thunderbolt 4 hosts) |
| Power | AC/DC power adapter, DC 24V |
| Dimensions | 187 × 156 × 118 mm (7.4 × 6.1 × 4.6 in) |
| Weight | 950 g (2.1 lb) |
| Warranty | 2 years (extendable with Premium Pack) |
| Processing software | Artec Studio |
| Computer for scanning | Required — connects via Thunderbolt 3 |
| 3D mesh formats | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| CAD formats | STEP, IGES, X_T |
| Measurement formats | CSV, DXF, XML |
| Ecosystem | Merges seamlessly with data from Artec Leo, Eva, and Micro II in Artec Studio |
Artec Spider II Premium Pack
The Spider II Premium Pack bundles everything for effortless capture of intricate geometry:
- Artec Spider II 3D scanner

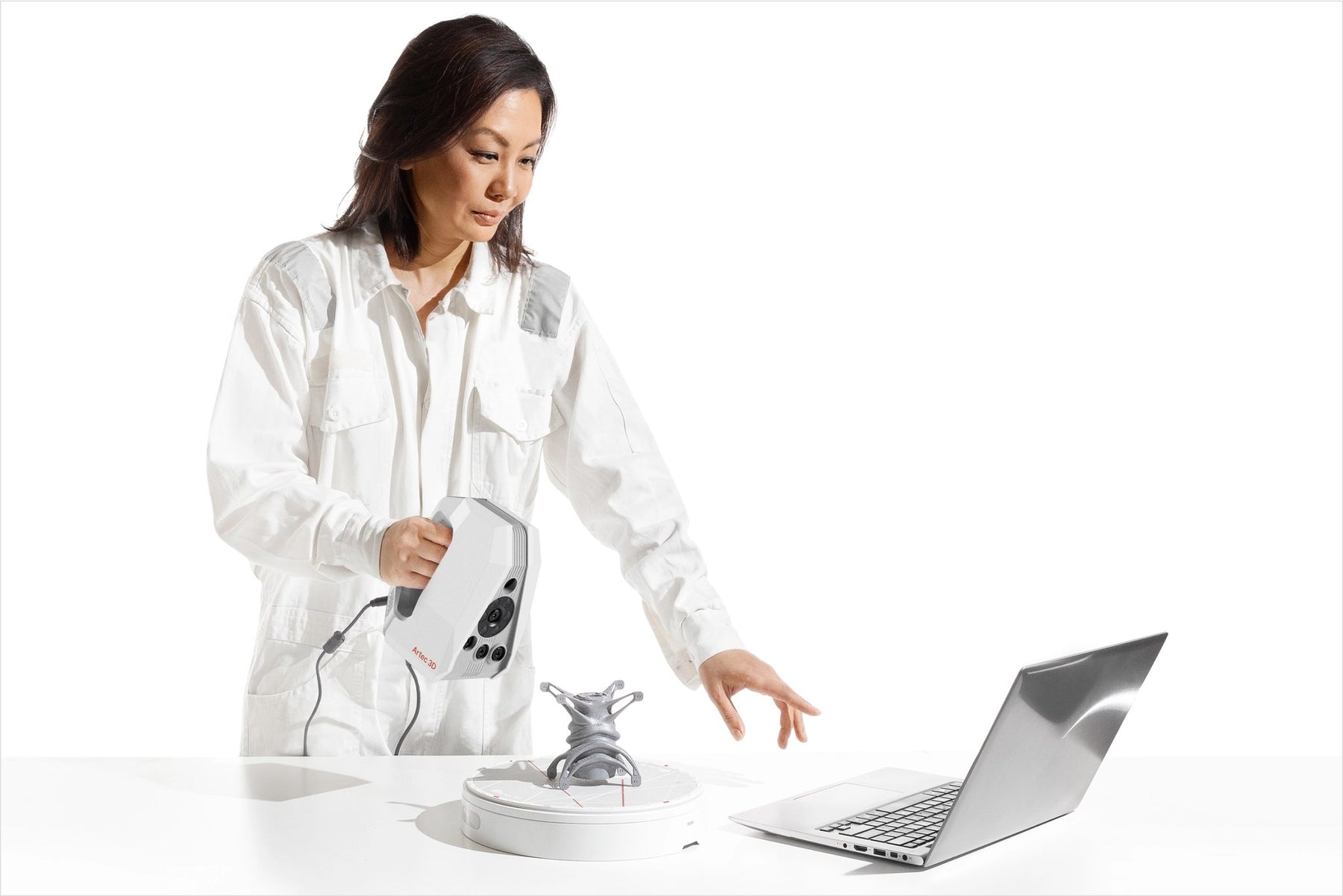

- Artec Turntable
- Thunderbolt optical cable, 5 m
- Battery for Spider II
- Extended warranty — 5 years total
- Artec Care contract — 5 years
- Artec Studio subscription — 5 years
Artec Micro II vs. Spider II vs. Leo
Three precision tiers, three different jobs. Here's the short version.
Artec Micro II
Automated desktop scanner with up to 0.005 mm (5 micron) accuracy for very small objects — dental, jewelry, tiny components. Objects come to the scanner, not the other way around.
Artec Spider II
0.05 mm handheld precision for small-to-medium objects and fine regions of larger parts. Target-free, contact-free, full color. The detail specialist you can carry to the part.
Artec Leo
Fully wireless with onboard processing and touchscreen — 0.1 mm (0.004 in) accuracy across medium to very large objects and whole scenes. Pairs beautifully with Spider II for full coverage plus detail.
Not sure which fits your parts? Tell us what you're scanning and we'll give you an honest recommendation — even if it means a less expensive scanner.
Frequently asked questions
What is the Artec Spider II and what makes it different?
How much does the Artec Spider II cost?
Does the Artec Spider II need a computer?
How accurate is the Artec Spider II?
What size objects can the Spider II scan?
Artec Spider II vs. Space Spider — what's the difference?
Artec Spider II vs. Artec Leo — which should I choose?
Do I need targets or markers to scan with the Spider II?
What software does the Spider II use and what file formats does it export?
Is 3DMakerWorld an official Artec 3D reseller?
Is there special pricing for schools and universities?
Ready to see the Artec Spider II in action?
Talk to a 3DMakerWorld specialist — Gold-Certified Artec 3D Reseller. Get expert advice, a personalized quote, or book a free live demo with your own parts.
