Metrology-grade accuracy where your tolerances are, fast full-color capture everywhere else. The Artec Neo is a hybrid, wireless handheld 3D scanner that does both in one scan and one dataset.
Stop choosing between accuracy and speed
Until now, precision scanning meant picking a side. A target-based laser scanner gave you certified accuracy, but only after covering the whole part in markers, and with no color. A structured-light scanner gave you speed, fine detail, and color, but not metrology-grade accuracy over distance.
The Artec Neo is built to end that trade-off. Place targets only on the features that carry tolerances, such as datums, fits, and interfaces, and scan everything else as-is. Neo switches between target tracking and target-free tracking automatically, mid-scan, and delivers a single complete model.
Artec's phrase for it is that metrology follows design intent, the same way GD&T does.
See the five ways to use targets →
Measure what matters. Capture everything.
Think of targets as a dial, not a requirement. Turn it all the way up for a first article, all the way down for a design model, or anywhere in between. Every setup ends in one complete dataset.

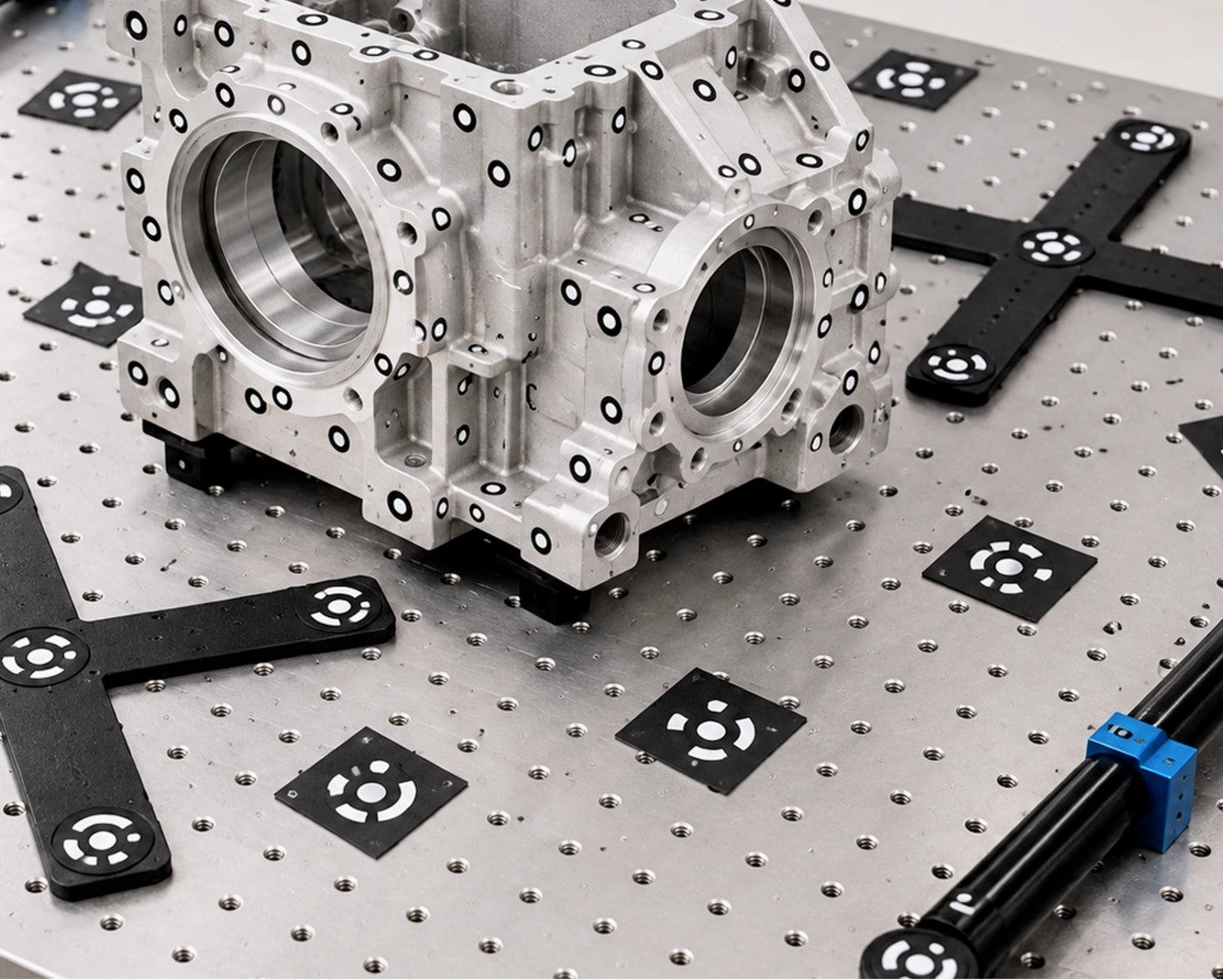

Metrology-grade accuracy everywhere
First article inspection, golden samples
Targets across the whole part keep every frame anchored, holding 0.025 mm + 0.035 mm/m (0.001 in + 0.0004 in/ft) volumetric accuracy over the entire surface.

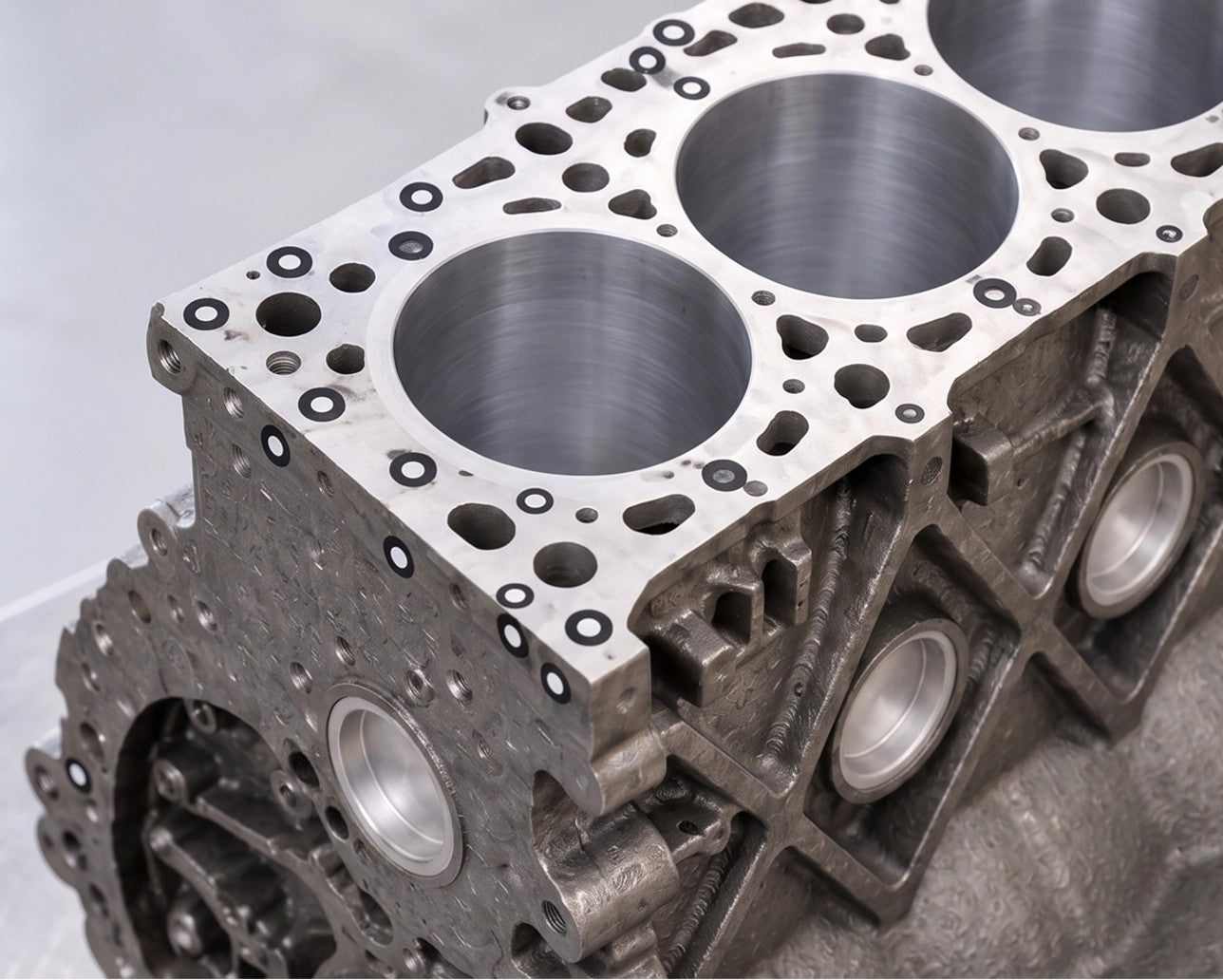

Accuracy on the features that do a job
Reverse engineering, validation
Anchor the deck, bores, and interfaces. The rough casting around them is captured target-free, with full detail and color.

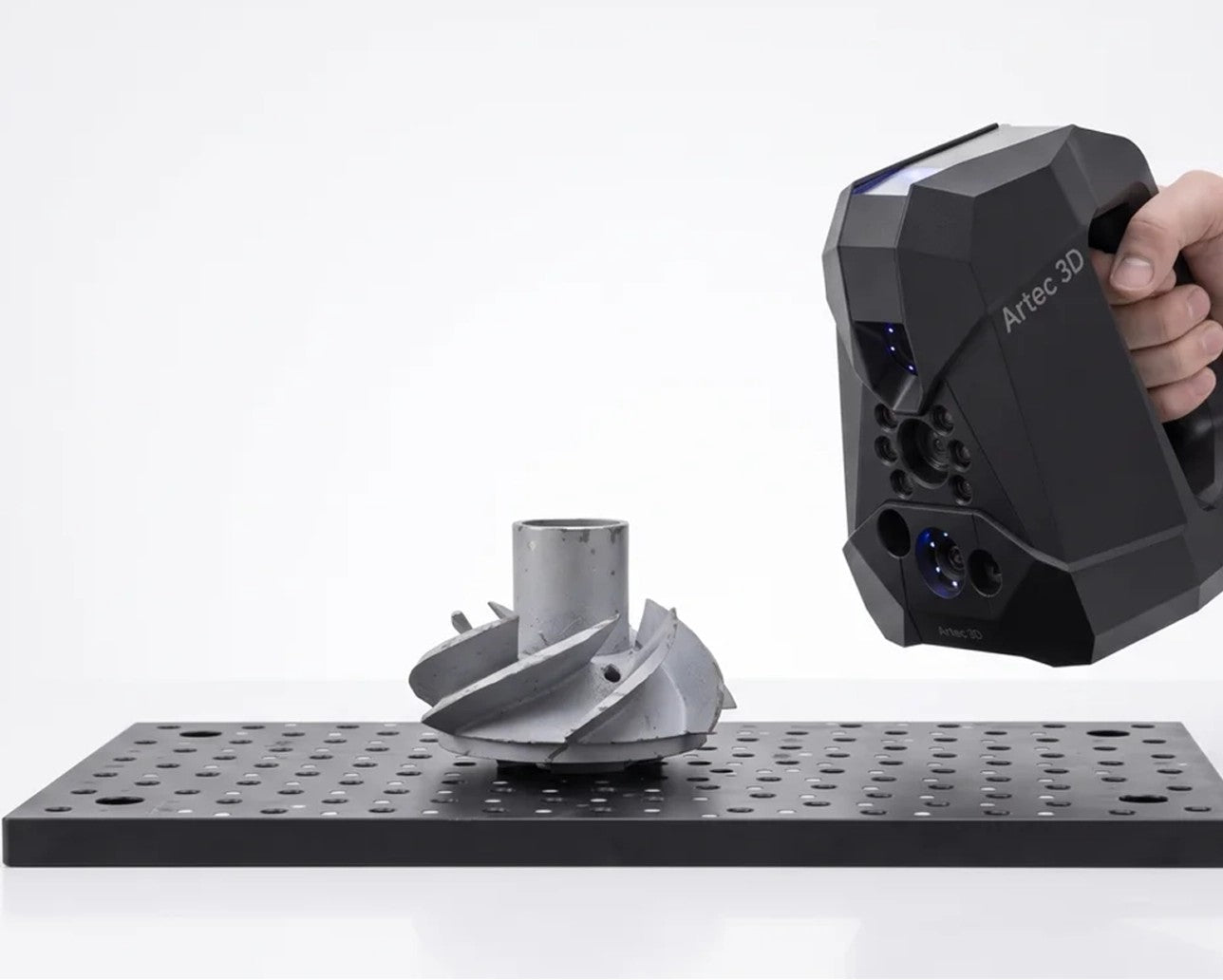

Inspect surfaces without covering them
Inspection, dimensional control
The fixture carries the accuracy framework, so critical surfaces stay clean and the next part needs no new targets. Deep channels are measured as-is and compared against CAD.

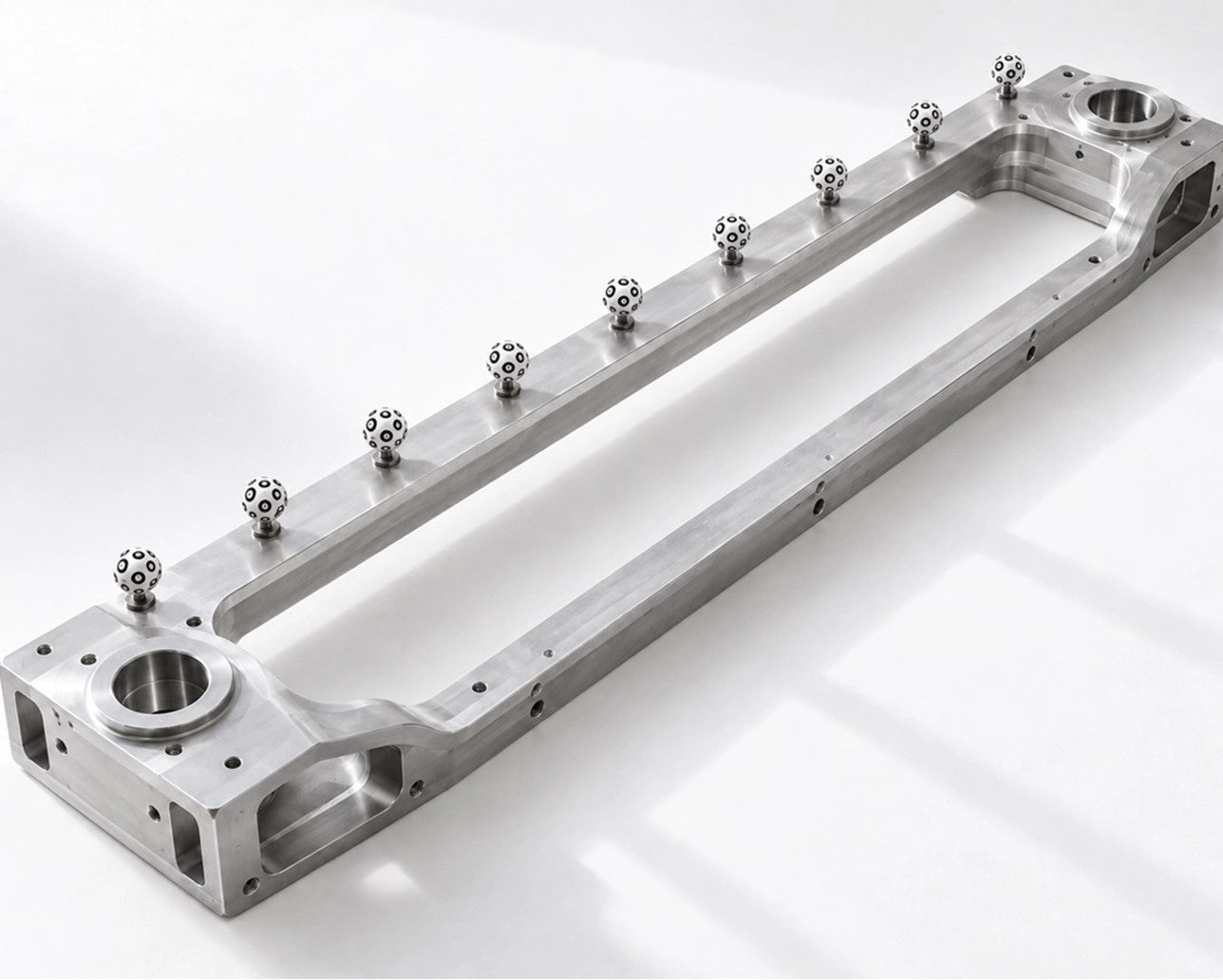

Relate distant features, skip the middle
Assembly, retrofitting, machine installation
A line of targets links far-apart features into one frame of reference. Get flange-to-flange distances, bolt-circle orientation, and mounting points over several meters without scanning everything in between.

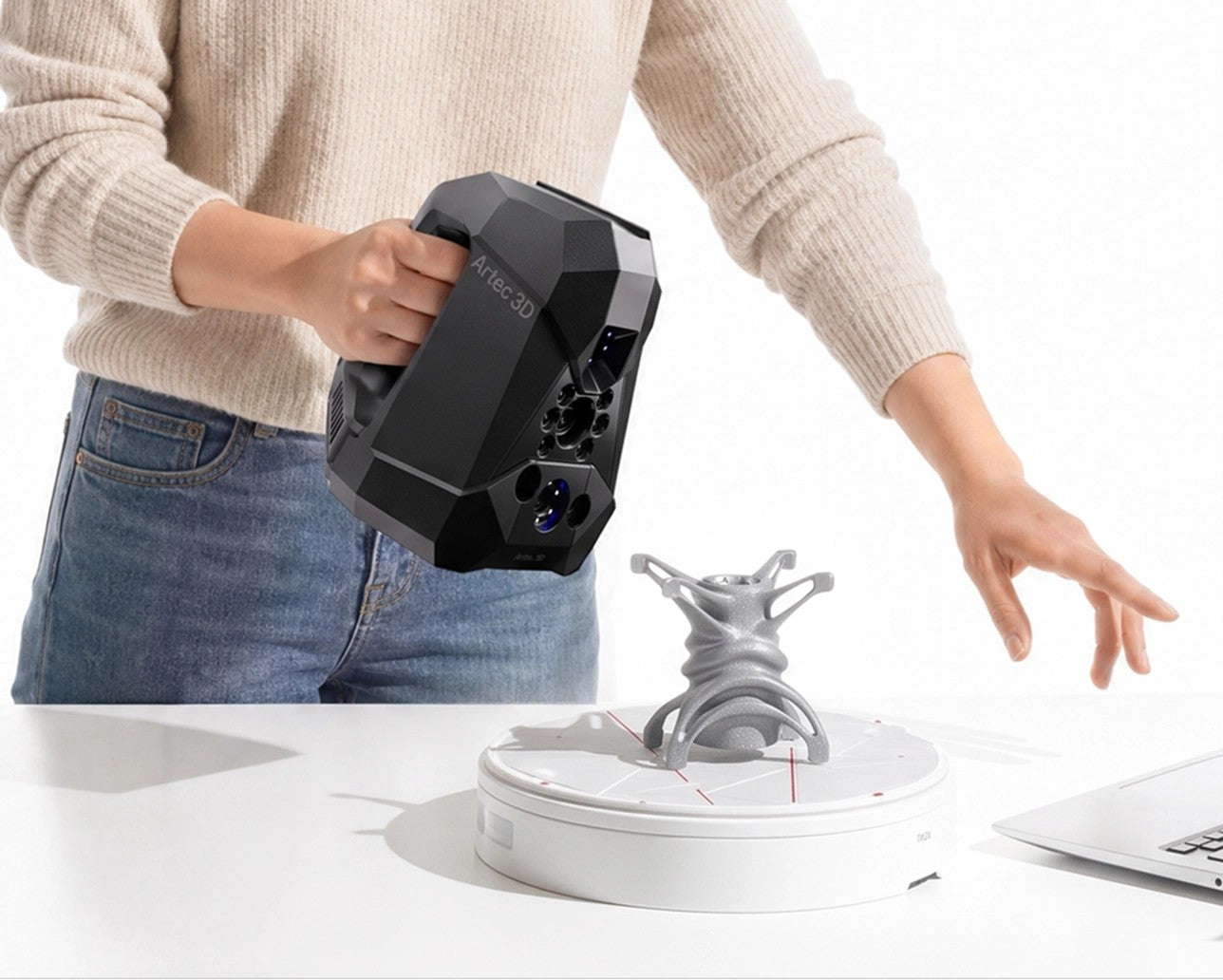

Fast, accurate capture with zero prep
Design, prototyping, 3D modeling
Scan complete objects in minutes at up to 0.05 mm (0.002 in) accuracy and resolution. No target placement, no surface preparation, clean meshes ready for CAD.
See the Artec Neo in action
Artec's official introduction to hybrid scanning with the Neo.

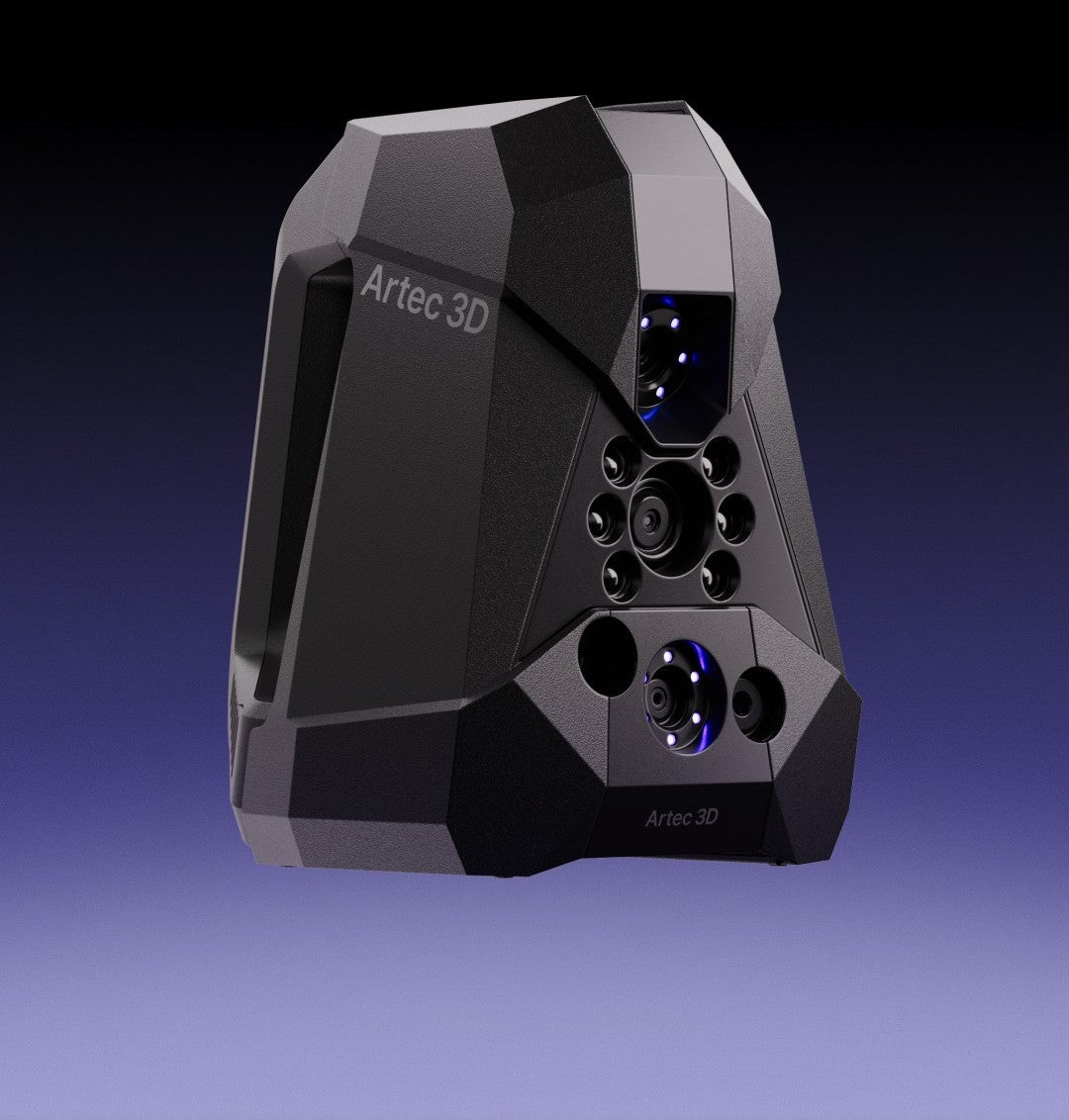

Engineered for tolerance-driven work
What is inside the Neo, and why it matters on a real inspection or reverse engineering job.
Hybrid tracking, one dataset
Neo tracks geometry, texture, and targets together and switches automatically. No second scan, no alignment step afterward.
Two accuracy levels, your choice
0.025 mm (0.001 in) with targets, 0.025 mm + 0.035 mm/m (0.001 in + 0.0004 in/ft) over distance. 0.05 mm (0.002 in) without, 0.05 mm + 0.3 mm/m (0.002 in + 0.0036 in/ft).
Certified, unit by unit
Every Neo is calibrated and tested per VDI/VDE 2634 Part 3 in Artec's metrology lab, which operates according to ISO/IEC 17025 principles, using robot-driven trajectories and traceable reference objects. The certificate ships in the box.
Full color, fine detail
0.05 mm (0.002 in) mesh resolution plus a 5 MP, 24-bit texture camera record part numbers, casting marks, wear, and surface condition alongside the geometry.
Deep holes and tight spaces
Blue-light optics and a short 0.19 to 0.3 m (7.5 to 11.8 in) working distance reach channels, recesses, and passages where a target will never fit.
8 million points per second
High-resolution surfaces complete in seconds, with tracking that can start from any point and re-acquire quickly if you lose it.
About half the lead time of a laser scanner
In Artec's published comparison on the same part, Neo finished the scan in 13 minutes. A metrology-grade laser scanner took 34. Most of the saving comes from not having to cover the entire part in targets first.
Source: Artec 3D benchmark. Your results will depend on the part and the tolerance plan, which is a good reason to see Neo run on your own part.

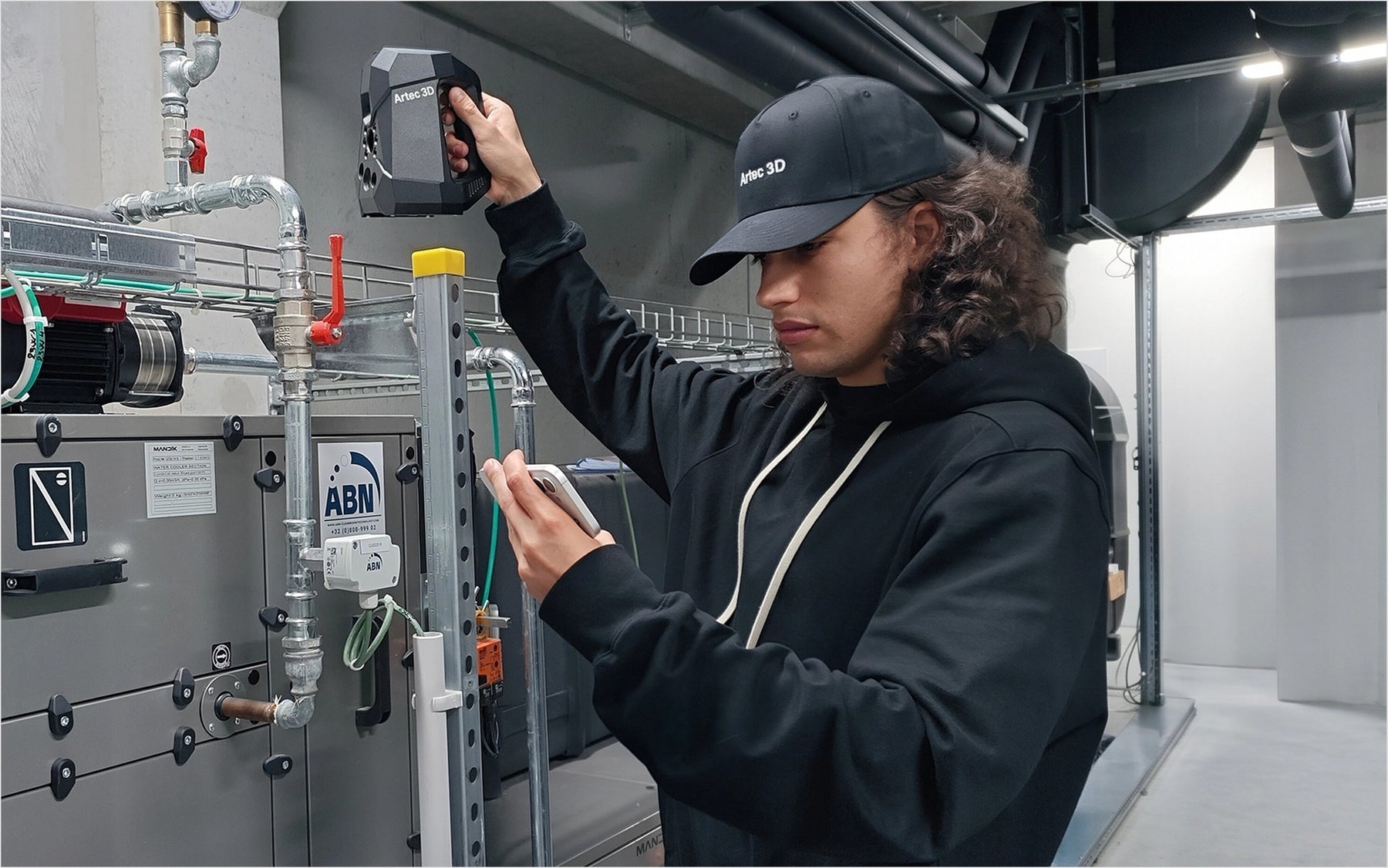

Where cables can't go, Neo goes anyway
Built-in batteries and Wi-Fi mean no tether to trip over on a ladder, inside a machine, or under a vehicle. Scan on site, at height, and in confined spaces, then plug into Thunderbolt when you are back at the workstation.
Good to know: Neo streams to a Windows PC running Artec Studio. If you want an onboard computer and screen, see the Artec Leo.
From scan to inspection report in Artec Studio
Neo runs natively in Artec Studio, the same software used across Artec's handheld and desktop scanners. If your team already runs Artec hardware, there is nothing new to learn.

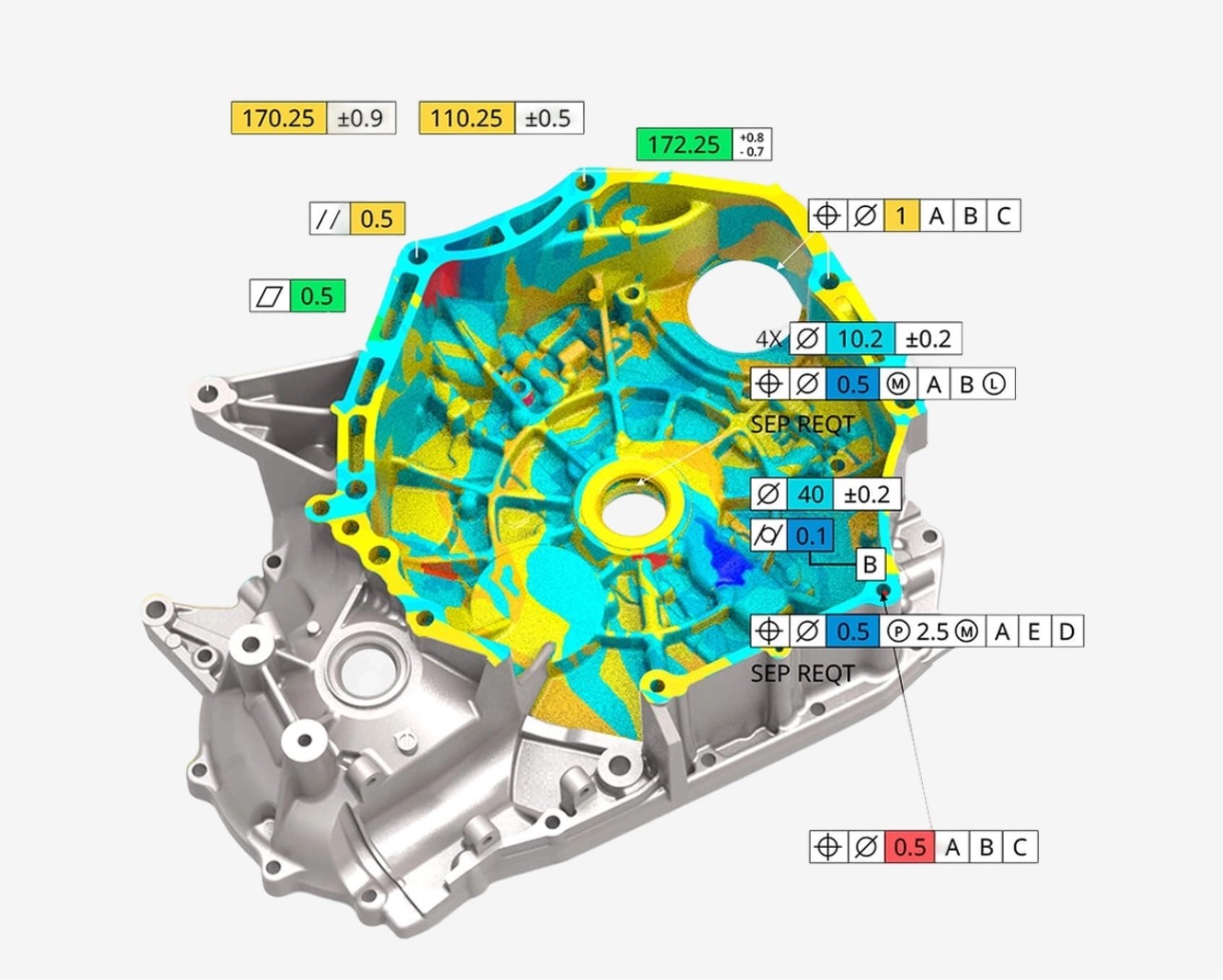

Inspect in the same session. Mesh-to-CAD and mesh-to-mesh deviation maps plus measurement tools turn a scan into a result without leaving the software.
Scan to CAD. Fit primitives, cut 2D sections for sketching, and auto-surface a mesh. Export STEP, IGES, or X_T.
Go further when you need to. Send data to Geomagic Design X, Geomagic Control X, SOLIDWORKS, or PolyWorks|Inspector for full reverse engineering and GD&T workflows. 3DMakerWorld carries the Geomagic and PolyWorks platforms.

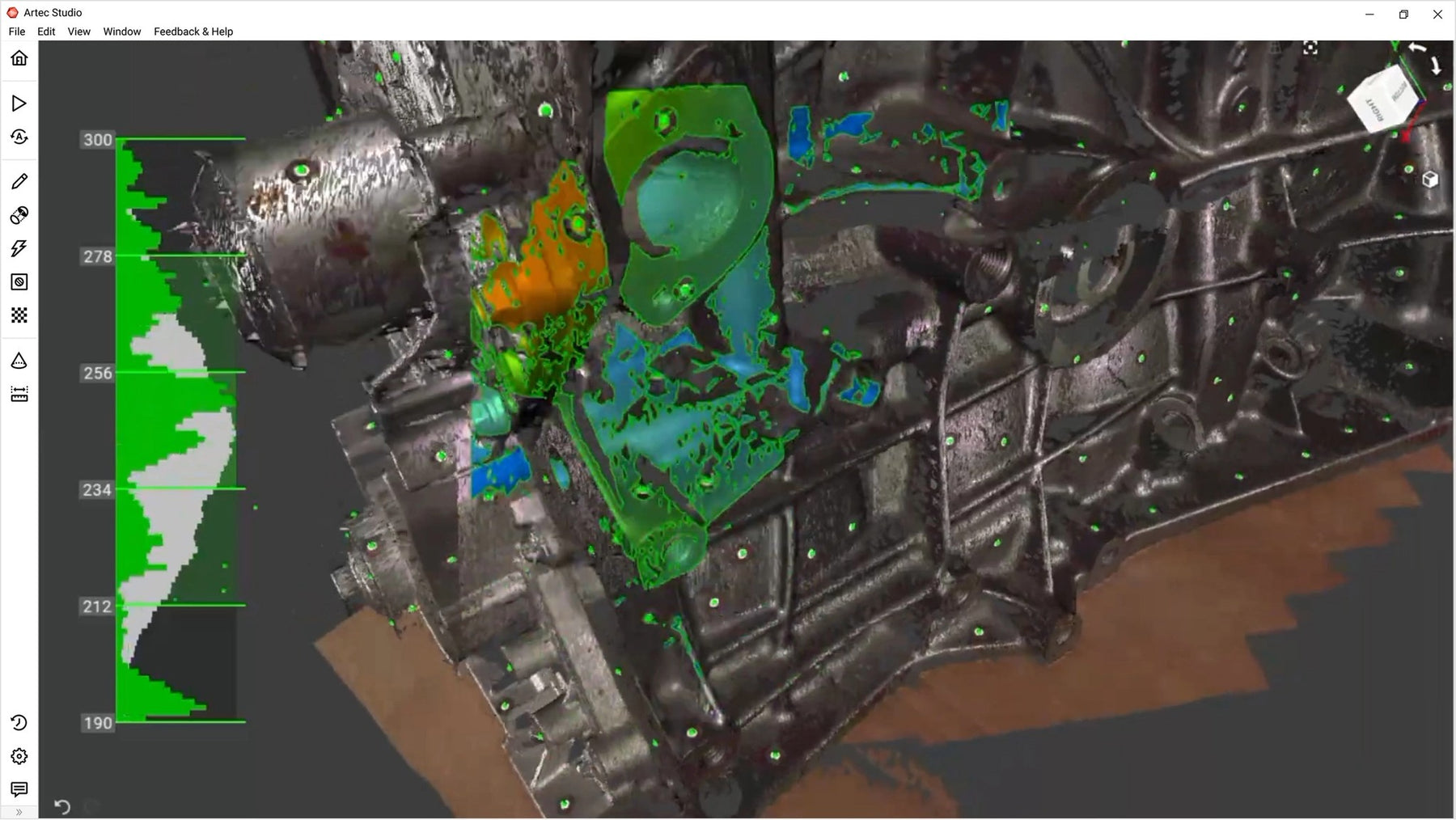

Live Neo capture of an engine in Artec Studio.
Works with your other Artec scanners. Merge Neo data with other Artec scans in one project. Artec highlights Neo plus Leo: two wireless handhelds, with Neo on the tolerance-critical areas and Leo's larger field of view covering big surfaces quickly. For wider scenes, Artec Twins combines Neo data with Artec's long-range LiDAR scanners.
Artec Neo vs. Point II vs. Spider II
Artec now offers three handheld scanners for precision work on small to medium parts. They overlap, so here is the straight version, including where Neo is not the best pick.
| Artec Neo | Artec Point II | Artec Spider II | |
|---|---|---|---|
| Tracking | Hybrid: targets, geometry, and texture | Targets required | Target-free (geometry and texture) |
| Technology | Blue LED structured light | Blue laser, Class II | Blue LED structured light |
| Accuracy, up to | 0.025 mm (0.001 in) with targets; 0.05 mm (0.002 in) without | 0.02 mm (0.0008 in) | 0.05 mm (0.002 in) |
| Volumetric accuracy | 0.025 mm + 0.035 mm/m (0.001 in + 0.0004 in/ft) with targets; 0.05 mm + 0.3 mm/m (0.002 in + 0.0036 in/ft) without | 0.015 mm + 0.035 mm/m (0.0006 in + 0.0004 in/ft) | 0.05 mm + 0.3 mm/m (0.002 in + 0.0036 in/ft) |
| Resolution, up to | 0.05 mm (0.002 in) | 0.02 mm (0.0008 in) | 0.05 mm (0.002 in) |
| Color texture | Yes, 5 MP | No | Yes, 5 MP |
| Wireless operation | Yes: built-in batteries and Wi-Fi | No, USB 3.0 | No, Thunderbolt |
| Typical object size | Small to medium; larger with a target trail | Small to large | Small to medium |
| Software | Artec Studio | Artec Studio | Artec Studio |
Choose Neo
When one job needs certified accuracy on key features and fast, full-color capture of everything else, or when you need to scan untethered.
Choose Point II
When every surface must hold the tightest tolerance, parts are large, dark, or shiny, and targets everywhere are acceptable. Also lighter: 0.57 kg (1.3 lbs) vs. 1.3 kg (2.9 lbs).
Choose Spider II
When target-free, high-resolution color capture is the whole job and 0.05 mm accuracy is enough.
Why buy from 3DMakerWorld?
As a Gold-Certified Artec 3D Reseller, we offer more than just a transaction. You get a dedicated partner invested in the success of your scanning projects.
-
Gold-Certified Artec 3D Partner Officially authorized to sell, support, and service the complete Artec 3D scanner lineup.
-
Honest pre-sale advice Tell us about your part and tolerance. If a Point II or Spider II is the better fit, we will say so.
-
We do this work ourselves Scanning, reverse engineering, and dimensional inspection are services we deliver, so we know these workflows from the operator's side.
-
Post-purchase support & service US-based support from people who know your exact hardware, not a generic call center.
-
Training & workflow guidance Guided onboarding, software training, and workflow best practices. Education and research discounts available.
Artec 3D Gold Reseller
3DMakerWorld holds Gold-Certified status, the highest level of Artec 3D reseller certification, reflecting our deep product expertise, sales commitment, and customer support capability.
Where Neo earns its keep
Anywhere a measurement decision rides on the scan.
Flush and gap control at panel interfaces, engine and component reverse engineering
Wear and damage assessment, repair validation, first article inspection
On-site inspection of pumps and impellers, including deep channels
Incoming and in-process QC, jig, fixture, mold, and die inspection
Reverse engineering of legacy parts when drawings no longer exist
Retrofit and installation measurements, connection points over several meters
Technical specifications
Complete Artec Neo specs, in metric and imperial.
| Accuracy, with targets | 0.025 mm (0.001 in) |
| Volumetric accuracy, with targets | 0.025 mm + 0.035 mm/m (0.001 in + 0.0004 in/ft) |
| Accuracy, without targets | 0.050 mm (0.002 in) |
| Volumetric accuracy, without targets | 0.050 mm + 0.3 mm/m (0.002 in + 0.0036 in/ft) |
| Mesh resolution | 0.050 mm (0.002 in) |
| Acceptance test | VDI/VDE 2634 Part 3, performed in Artec's metrology lab operating according to ISO/IEC 17025 principles; per-unit accuracy certificate |
| Object size | Small to medium |
| Working distance | 0.19 to 0.3 m (7.5 to 11.8 in) |
| Volume capture zone | 1,800 cm³ (110 in³) |
| Field of view (H × W), closest range | 128 × 104 mm (5 × 4 in) |
| Field of view (H × W), furthest range | 171 × 152 mm (6.7 × 6 in) |
| Depth of field | 110 mm (4.3 in) |
| Data acquisition speed, up to | 8 million points/second |
| 3D reconstruction rate for real-time fusion, up to | 15 FPS |
| Target-based tracking | Yes (retroreflective targets; Artec targets included) |
| Target-free geometry and texture tracking | Yes |
| Hybrid mode (target and target-free in one scan) | Yes, automatic switching |
| Texture resolution | 5 MP |
| Color depth | 24 bpp |
| Scanner type | Handheld, hybrid (target and target-free) |
| 3D light source | Blue LED structured light, 450 nm |
| Texture illumination | White LED, CRI > 95, 4000 K |
| Wireless | Built-in Wi-Fi, range up to 6 m (19.7 ft) with a router |
| Battery | 40 to 50 minutes continuous scanning; 2 batteries included |
| Wired interface | Thunderbolt 3, compatible with Thunderbolt 4 hosts |
| Power source | Batteries or AC/DC power adapter, 24 V DC |
| Dimensions (H × D × W) | 187 × 156 × 118 mm (7.4 × 6.1 × 4.6 in) |
| Weight | 1.3 kg (2.9 lbs) with batteries |
| Warranty | 2 years |
| Software | Artec Studio |
| Supported OS | Windows 11 |
| Recommended computer | 13th or 14th Gen Intel Core i7 or i9, NVIDIA RTX 4070 with 8 GB VRAM |
| Minimum computer | 12th Gen Intel Core i9, NVIDIA RTX 4060 with 8 GB VRAM |
| 3D mesh formats | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| CAD formats | STEP, IGES, X_T |
| Measurement formats | CSV, DXF, XML |
Artec Neo is a newly released product and Artec 3D may update its specifications over time. Specifications shown are from Artec 3D as of September 2026.
Frequently asked questions
Everything you need to know about the Artec Neo and buying from 3DMakerWorld.
What is the Artec Neo?
Artec Neo is a wireless, hybrid handheld 3D scanner with metrology-grade accuracy, built for inspection and reverse engineering. It combines target-based and target-free scanning in one device, so you can capture less critical areas quickly without targets and apply targets only where the highest accuracy is required.
What is hybrid 3D scanning?
Hybrid scanning means the scanner tracks by geometry and texture where no targets are present and switches automatically to target-based tracking where they are. You no longer choose between a fast, high-resolution scan and a metrology-grade one: context is captured target-free, and key features such as datums, seals, and alignment surfaces are anchored with targets, all in one continuous scan.
How accurate is the Artec Neo?
With targets, up to 0.025 mm (0.001 in), with volumetric accuracy of 0.025 mm + 0.035 mm/m (0.001 in + 0.0004 in/ft). Without targets, up to 0.05 mm (0.002 in), with volumetric accuracy of 0.05 mm + 0.3 mm/m (0.002 in + 0.0036 in/ft). The first figure in each pair describes accuracy on local detail. The second describes how error grows with distance across a whole object.
Do I always need targets with the Artec Neo?
No. Neo reconstructs surfaces using geometry and texture tracking and can scan with no targets at all at up to 0.05 mm accuracy. Add targets only where tolerances demand the higher 0.025 mm figure.
How is Neo's accuracy verified?
Every unit is individually calibrated and acceptance-tested per VDI/VDE 2634 Part 3 in Artec 3D's metrology laboratory, which operates according to ISO/IEC 17025 principles. Tests use robot-driven trajectories and internationally traceable reference objects to remove operator variability. Each scanner ships with its own accuracy certificate.
What targets does the Artec Neo use?
Retroreflective targets. Each Neo includes a set of Artec targets, and more can be purchased separately. Artec establishes and verifies the accuracy specifications using its own targets, so those are recommended for accuracy-critical work. Third-party retroreflective targets may work, but specified accuracy is not assured with them.
Is the Artec Neo fully wireless?
Yes. Built-in batteries and Wi-Fi let you scan untethered up to 6 m (19.7 ft) from a router, with 40 to 50 minutes of continuous scanning per battery set. Note that Neo still streams to a Windows computer running Artec Studio. If you need a scanner with an onboard computer and screen, look at the Artec Leo. Neo also has a Thunderbolt interface for wired scanning at a workstation.
What size parts can the Artec Neo scan?
From small, detail-dense components such as turbine blades up to jigs, fixtures, castings, and assemblies. With a target trail, Neo can relate features across structures several meters long, such as vehicle bodies and aircraft panels.
How does the Artec Neo compare to the Point II and Spider II?
Point II is a target-based laser scanner with slightly higher accuracy (0.02 mm), a larger field of view, and lower weight, but it always requires targets, captures no color, and is tethered. Spider II is target-free with 0.05 mm accuracy and full color, but it does not offer Neo's target-anchored 0.025 mm accuracy and is tethered. Neo covers both approaches in one wireless device.
What software does the Artec Neo use?
Artec Studio, the same software used across Artec's handheld and desktop scanners. It includes scan-to-CAD and inspection tools and exports to Geomagic Design X, Geomagic Control X, SOLIDWORKS, and PolyWorks|Inspector. Geomagic and PolyWorks software are available from 3DMakerWorld.
How much does the Artec Neo cost?
The Artec Neo's US list price is $38,600, set by Artec 3D, and it carries a 2-year warranty. As a Gold-Certified reseller we quote current promotions and education and research pricing. Request a quote through the form on this page or email sales@3dmakerworld.com.
Have a part in mind? Let's talk tolerances.
Talk to a 3DMakerWorld specialist, a Gold-Certified Artec 3D Reseller. Get straight advice on whether Neo fits your part, a personalized quote, or a demo.
We also provide 3D scanning, reverse engineering, and dimensional inspection services. Put the deliverables to work on a real part before you commit to equipment. Mention services in the form below, or learn more about our 3D scanning and dimensional inspection services.
