Key Features:
- Ultra-high precision, fast laser 3D scanner with submillimeter precision to ensure you capture every detail
- Ideal for reverse engineering, inspection and construction. Scan large objects both indoors and outdoors!
- Cleanest 3D data capture for minimum post-processing time
- Artec Ray II allows you to capture precise long-range 3D measurements of complex objects and shapes from up to 130-meters with its built-in LiDAR 3D scanning technology.
- Portable and compact, you can set it up indoors or outdoors, without need for a power source, since the internal battery will last you for up to 4 hours.

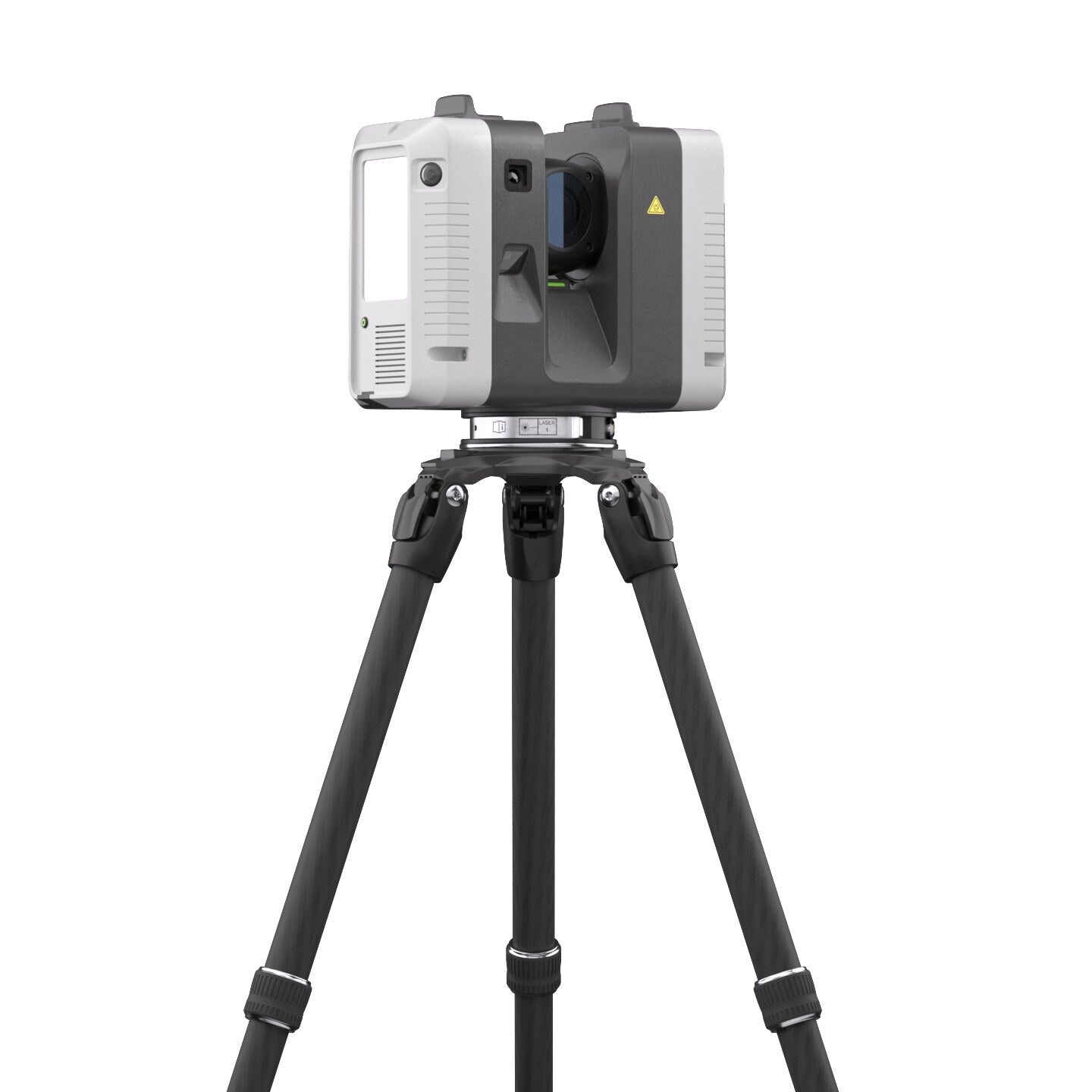

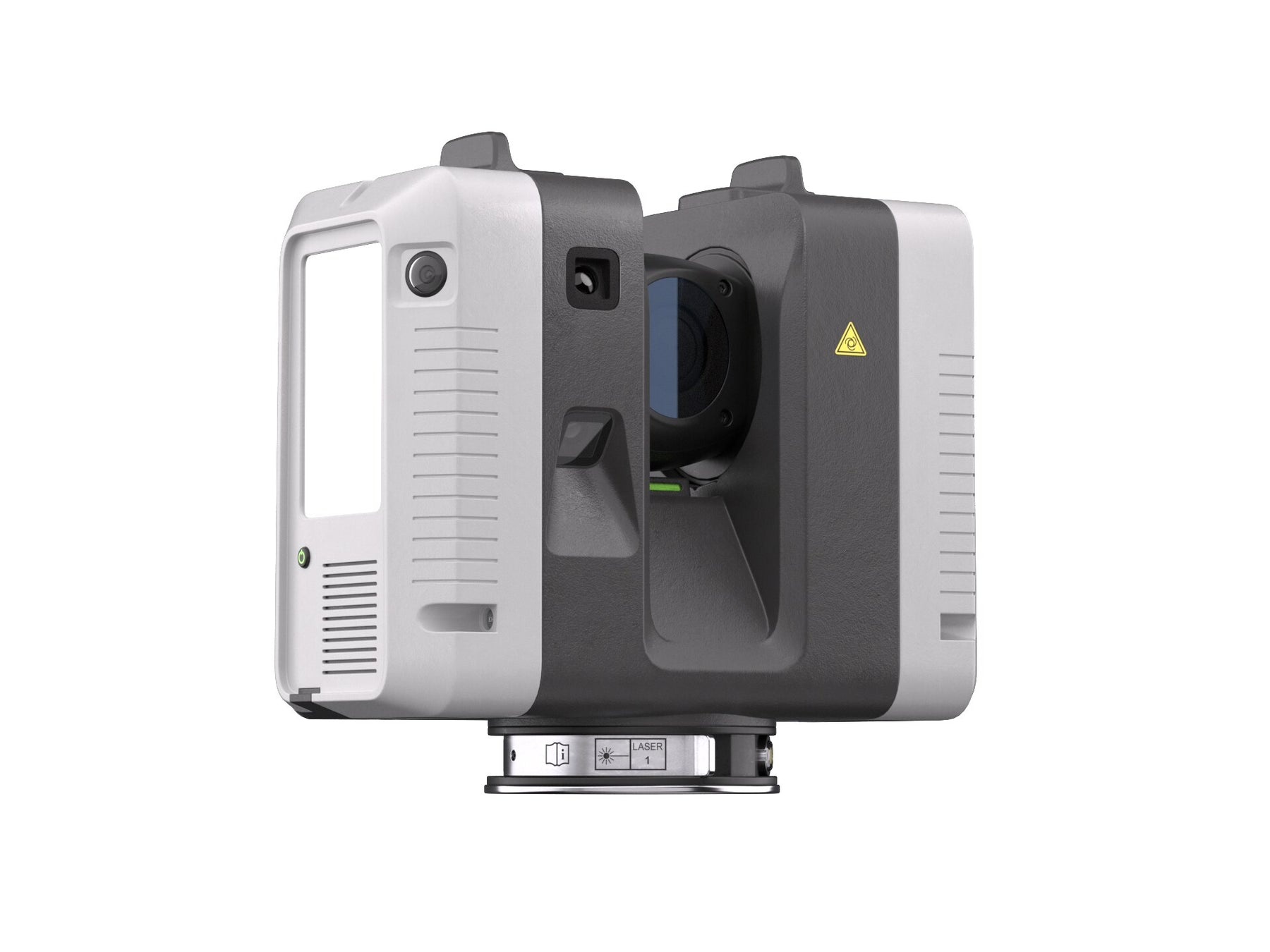

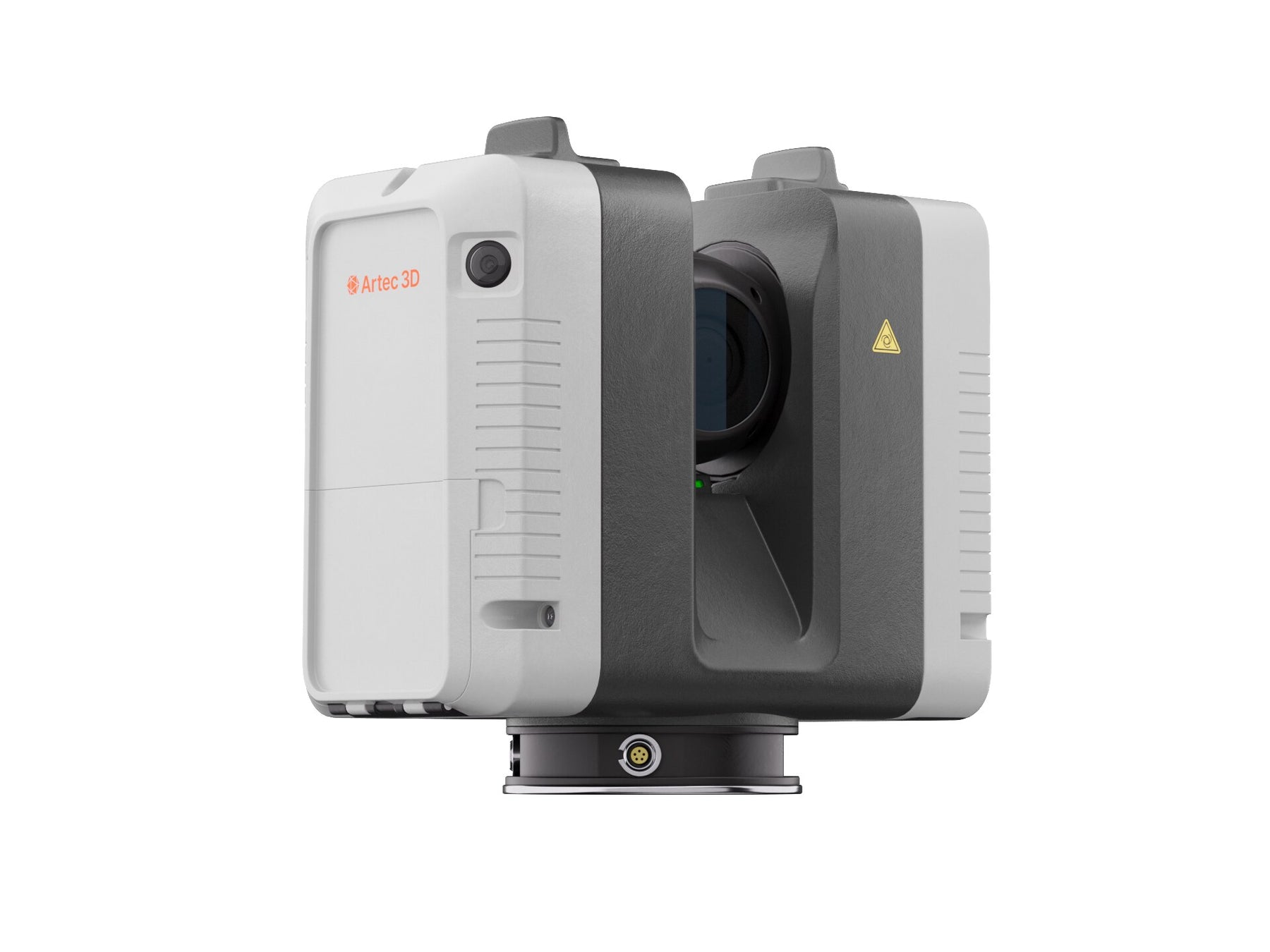

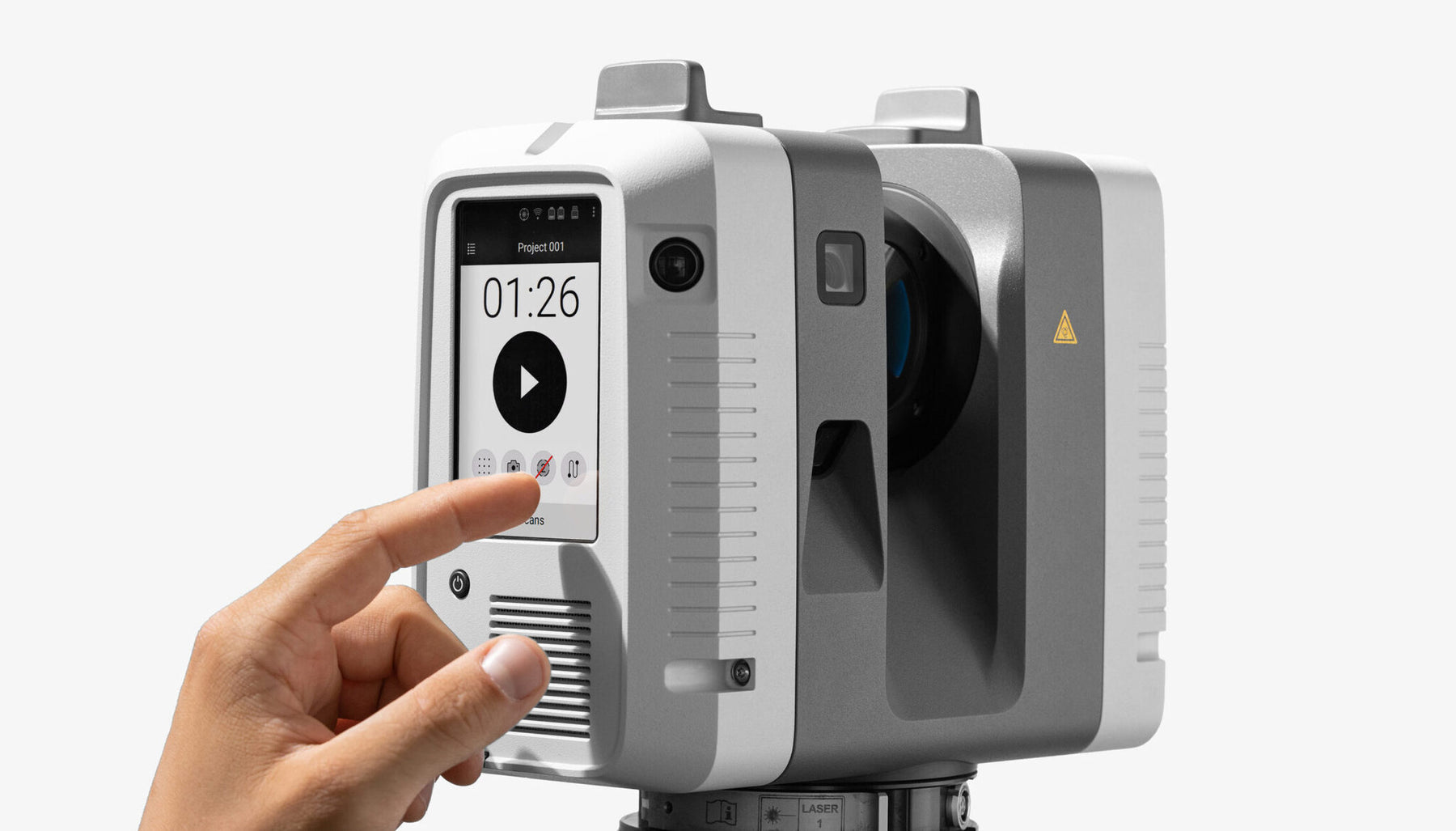

With the high-accuracy, long-range, wireless Ray II laser 3D scanner you can precisely and rapidly capture large to massive objects, scenes or areas, and from up to 130 m away. Expect 3D point accuracy that meets high professional standards and best-in-angular-class accuracy.

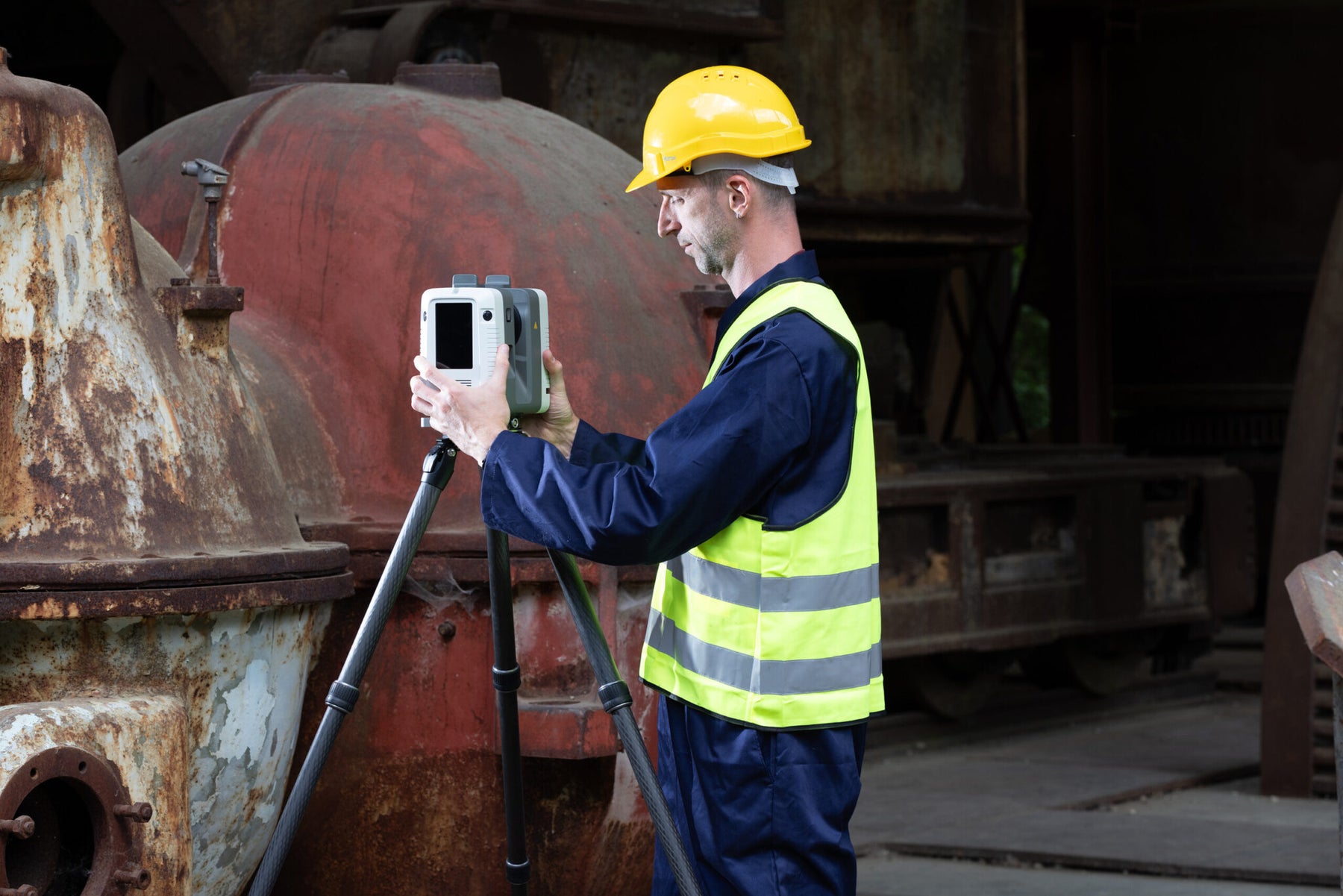

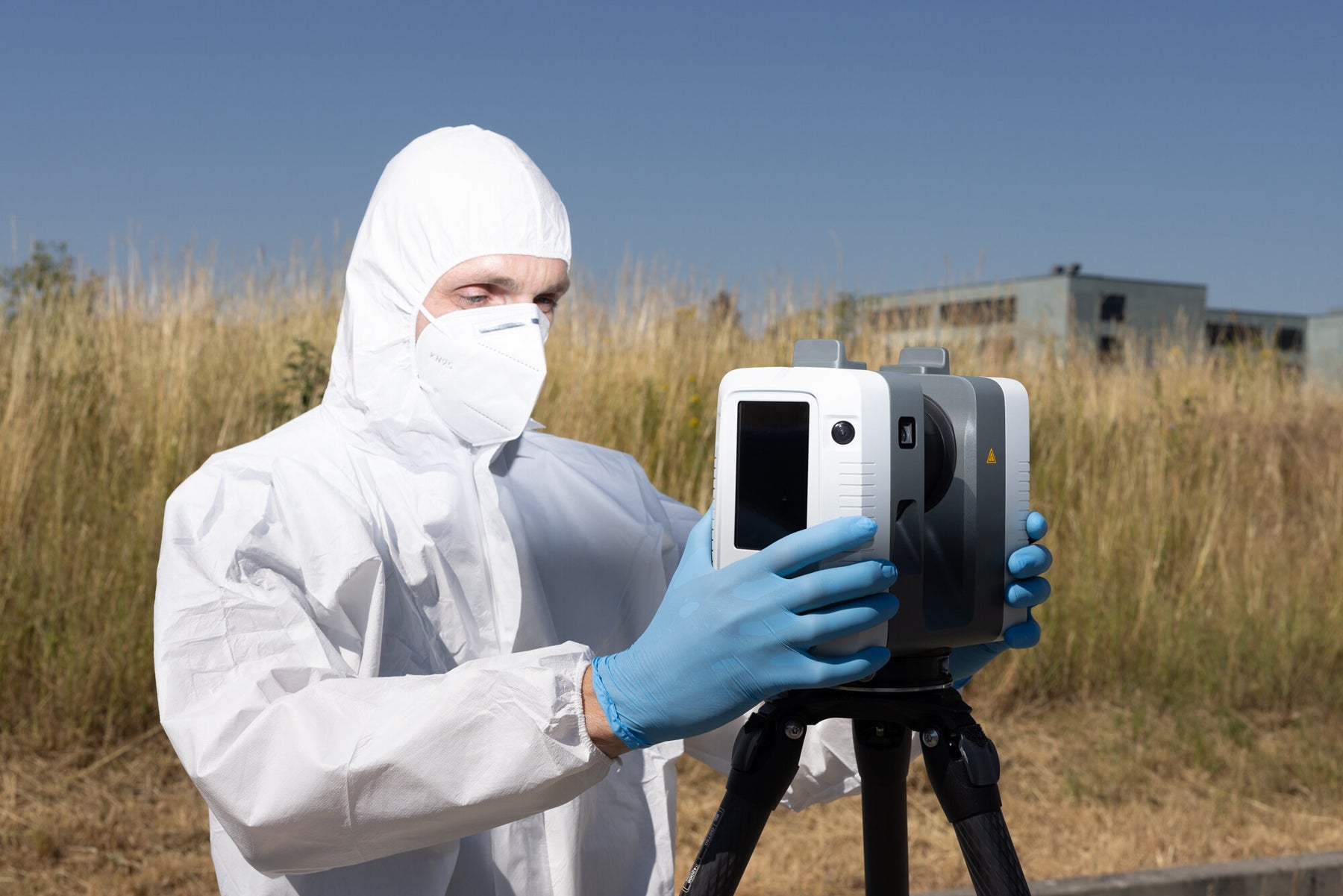

Ideal for precise capture of huge objects such as wind turbines, ship propellers or airplanes, bridges or factory floors, forensic scenes or archeology sites, this professional LiDAR solution produces 3D scans of the highest quality, whether your application is reverse engineering, inspection, creating true-to-life digital twins, documenting crime scenes, or making change-over-time assessments of civil infrastructure.
The wireless Ray II’s lightweight portability make it a cinch to take anywhere you need: vehicles can be captured in minutes, aircraft and full-sized buildings in just a few hours.
Item Specifics
Range: Up to 130 m
3D point accuracy: 1.9 mm @ 10 m; 2.9 mm @ 20 m; 5.3 mm @ 40 m
Range accuracy: 1.0 mm + 10 ppm
Angular accuracy: 18" (0.87 mm @ 10 m)
Range Noise: 0.4 mm @ 10 m OR 0.5 mm @ 20 m
Camera: 36 MP 3-camera system captures 432 MPx raw data for calibrated 360° × 300° spherical image
3D Capture Rate: Up to 2,000,000 pts/sec
Laser wavelength: 1550 nm
Laser class (IEC EN60825-1:2007): Class 1
Geolocation sensors: Altimeter, Compass, Global Navigation Satellite System
Power source: Two Li-Ion batteries, powers the scanner for up to 4 hours
Size: 4.7" × 9.4" × 9.1"
Weight: 11.7 lbs, nominal (without batteries)
For more details on specifications, see the Artec Ray II Brochure.
